china quality factory tinplate coil sheet supplier

Short Description:

Tinplate is most commonly used to make a variety of containers, such as food and beverage cans. However, its application is not limited to containers; tinplate is also used to make motor parts and many other products. Future Metal, as a professional tinplate coil supplier, can provide tinplate steel coil & sheets with competitive prices, and has been exported to more than 50 countries and regions, if you are looking for tinplate coils & sheet, contact us to get the biggest discount !


Product Detail

Product Tags

Tinplate coil is a thin gauge, cold reduced mild steel coil or strip coated on both sides with commercially pure tin. They combine the properties of steel and tin, combining the strength of steel with the corrosion resistance and solderability of tin.

Feature of tinplate coil :

1. Tinplate is light in weight and high in strength, making it easy to transport and store.
2 Tinplate is the best material to provide the best protection for food.
3 Tinplate provides a safe and reliable packaging option for chemical/technical products.

tinplate coil

Specifications of tinplate coil

Size:

thickness: 0.15-0.5MM

width: 700-1100MM

Medium and high-grade food-grade tin-plated products, the main application fields include milk powder cans, ketchup cans, eight-treasure porridge cans, aerosol cans, top and bottom lids and various beverage cans.

The plate shape control technology can meet the requirements of the 80 sheets/minute printing production line; the thickness, hardness and tin plating uniformity control technology can meet the requirements of the 800 cans/minute high-speed can production line.

ITEM Once rolled product Secondary rolled product
Cutting board Steel coil Cutting board Steel coil
Manufacturable Range Usual Manufacturable Range Manufacturable Range Usual Manufacturable Range Manufacturable Range Usual Manufacturable Range Manufacturable Range Usual Manufacturable Range
0.15-0.50 0.18-0.40 0.15-0.80 0.18-0.60 0.135-0.36 0.135-0.36 0.135-0.36 0.135-0.36
Thickness(mm)
Width(mm) 457-1,038 508-970 457-1,038 508-970 457-1,038 508-1,038 457-970 508-965
Length(mm) 480-1,100 500-1,050 480-1,100 500-1,050
Weight(mm) 2.0-10.0 3.0-10.0 2.0-10.0 3.0-10.0
Inner diameter(mm) 419/508 419/508 419/508 419/508
Outer diameter(mm) 1,740Max 1,740Max 1,740Max 1,740Max
Tin plating amount(g) 1.1/1.1,2.8/2 8,5.6Z5.6,8.4Z8.4,11.2/11.2,19.0/19.0
1.1/2.8,2.8Z5.6,2.878.4,2.8/11.2 , 5.6Z8.4 , 5.6/11.2 , 5.6/15.1,8.4/11.2,8.4/15.1
Annealing BA、CA CA
Surface B、R1、R2、S1、S2、S3 R1
Hardness T1、T2、T2.5、T3、T3.5、T4、T5 DR7.5、DR8、DR9、DR9M、DR10
Oiled DOS
Reflow, No reflow

Remarks: Usually manufacturing standard JISG3303, acceptable manufacturing standard ASTM, EN

Why choose our tinplate coil

As a leading steel coil (carbon steel coil, ss steel coil , crgo silicon steel coil, tinplate coil,etc) manufacturer in China, we have a complete production line and a stable supply capacity. Choosing us will allow you to save more time and cost and get the maximum benefit!

tinplate roll

Tinplate coil thickness

Tinplate coil supplierTinplate Roll, Tinplate Sheet Manufacturer

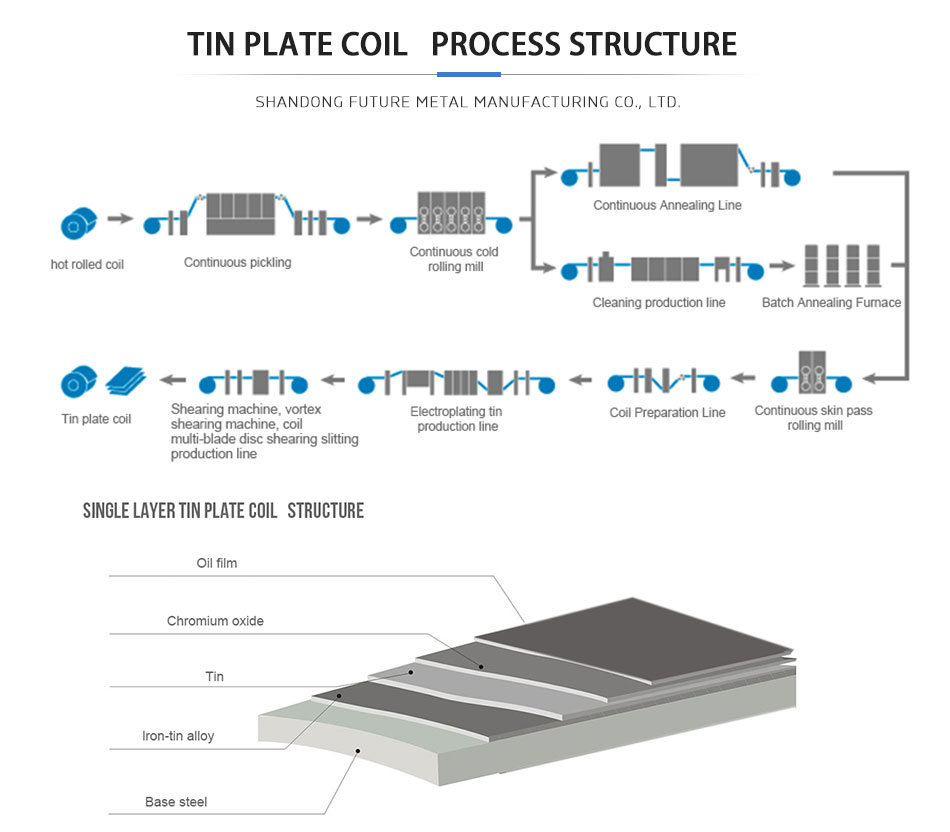

Tinplate Coil, Tinplate Sheet Production Process

As a leading steel coil (carbon steel coil, ss steel coil , crgo silicon steel coil, tinplate coil,etc) manufacturer in China, we have a complete production line and a stable supply capacity. Choosing us will allow you to save more time and cost and get the maximum benefit!

Tinplate Roll, Tinplate Sheet Production Process

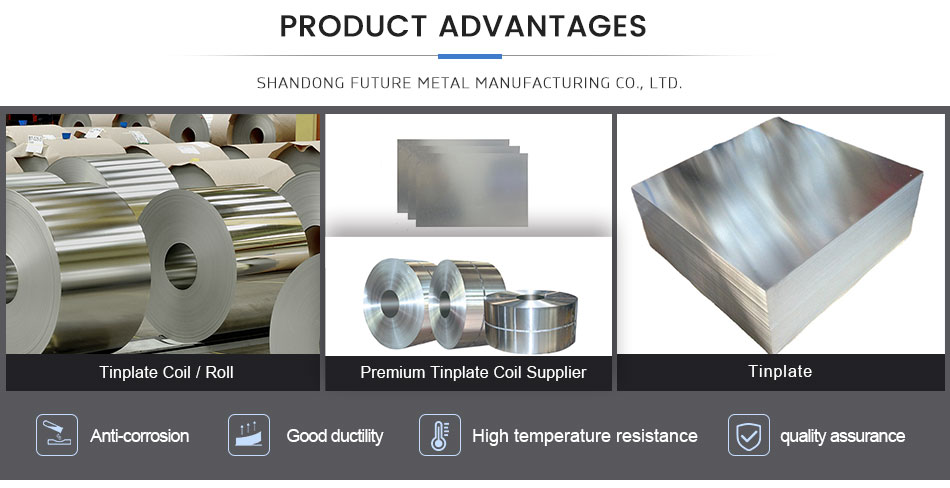

Advantages of Future Metals

As a leading steel coil (carbon steel coil, ss steel coil , crgo silicon steel coil, tinplate coil,etc) manufacturer in China, we have a complete production line and a stable supply capacity. Choosing us will allow you to save more time and cost and get the maximum benefit!

Tinplate Coil, Tinplate Sheet Supplier

Tinplate Coil, Tinplate Sheet Stock,Ships Immediately

As a leading steel coil (carbon steel coil, ss steel coil , crgo silicon steel coil, tinplate coil,etc) manufacturer in China, we have a complete production line and a stable supply capacity. Choosing us will allow you to save more time and cost and get the maximum benefit!

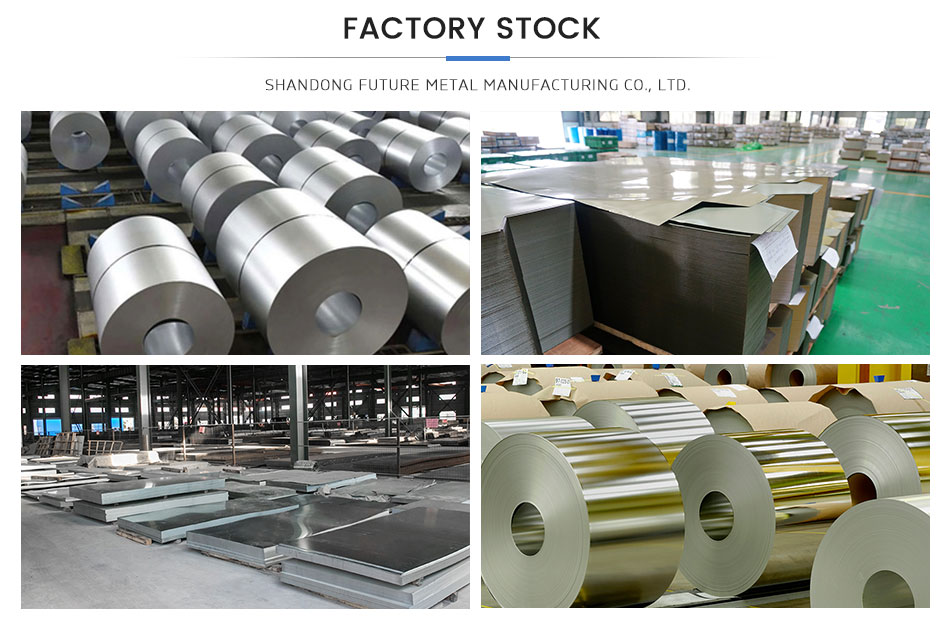

tinplate coil stcok

tinplate coil factory

Professional tinplate coil & sheet manufacturer in China

Our factory has more than 30 years of production and export experience, exporting to more than 50 countries and regions, such as the United States, Canada, Brazil, Chile, the Netherlands, Tunisia, Kenya, Turkey, the United Arab Emirates, Vietnam and other countries. With a fixed production capacity value every month, it can meet the large-scale production orders of customersNow there are hundreds of customers with fixed large-scale annual orders. If you want to buy steel coil, tinplate coil &sheet,crgo coil,welded pipe/tube,square hollow sections pipe/tube,rectangular hollow sections pipe/tube, low carbon steel pipe, high carbon steel tube ,rectangular pipe, carton steel rectangular pipe,square tube, alloy steel pipe, seamless steel pipe, carbon steel seamless tube,steel coils, steel sheets ,precision steel tube,and other steel products, contact us to provide you with The most professional service, save your time and cost !

    Our factory also sincerely invites regional agents in various countries. There are more than 60 exclusive steel plate, steel coil and steel pipe agents. If you are a foreign trading company and are looking for the top suppliers of steel coil(carbon steel coil & stainless steel coil & cold roll steel coil & hot rolled steel coil ) , steel pipes and steel coils in China, please contact us. To provide you with the most professional and high-quality products in China to make your business better and better !

   Our factory has the most complete steel product production line and the strictest product testing process to ensure a 100% product pass rate; the most complete logistics delivery system, with its own freight forwarder, saves you more transportation costs and guarantees 100% of the goods. perfect packaging and arrival. If you are looking for the best quality steel sheet, steel coil, steel pipe manufacturer in China, and want to save more logistics freight, please contact us, our professional multilingual sales team and logistics transportation team will provide you with the best Steel product service to ensure you receive a 100% quality guaranteed product !

   Get the best quotation for tinplate coil&sheet: you can send us your specific requirements and our multilingual sales team will provide you with the best quotation!  Let our cooperation start from this order and make your business more prosperous !
